Air conditioner grille mold of home appliance
1.Product Introduction
Kaihua Mold stands at the forefront of plastic injection molding innovation, specializing in precision Air conditioner grille molds. We understand that Air conditioner grilles are not just functional ventilation components but also critical aesthetic elements. By integrating cutting-edge technology with master craftsmanship, we ensure our molds accurately replicate even the most intricate grille patterns and optimized airflow designs—down to the finest textures and structural details.
With a strong focus on customized solutions, our experienced team delivers tailored mold systems for residential, commercial, and industrial Air conditioner units. From material selection and structural optimization to mass production readiness, we provide end-to-end mold engineering to meet exact specifications. Partnering with Kaihua means choosing an efficient, professional, and innovative collaborator, committed to elevating both product quality and manufacturing efficiency in the Air conditioner industry. Besides, Its Injection mold of refrigerator drawer and Injection mold of AC Components and are also widely recognized by clients for their superior quality.
2.Case Product Parameters
| Product Name | Air conditioner grille mold |
| Plastic material | ABS/PP/HIPS/Customz |
| Mold size | Customz |
| Mold weight | Customz |
| Molding cycle | Customz |
| Hot runner | YUDO/HASCO/Synventive/DME/Customz |
| Product wall thickness | 3.0-4.0mm |
| Mold shrinkage | Customz |
| Physical weight | Customz |
| Product size | Customz |
| Application | Customz |
| Clamping type | Customz |
| Grain or electroplate | Customz |

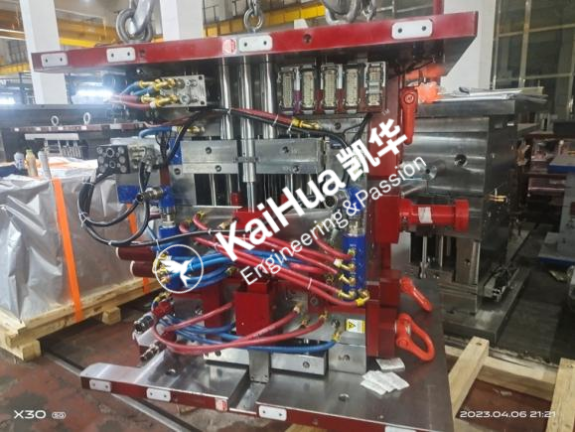

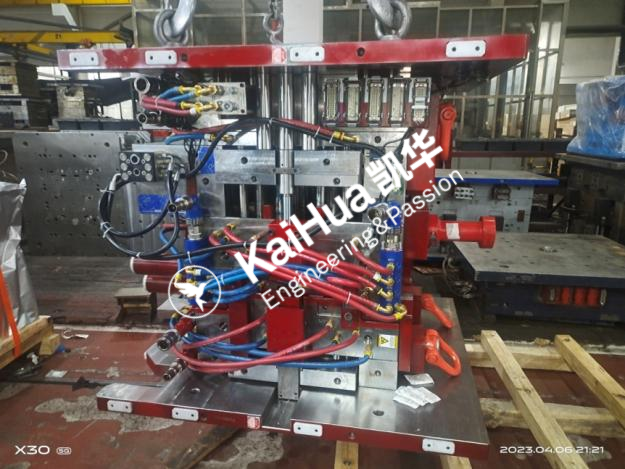

3.Production details

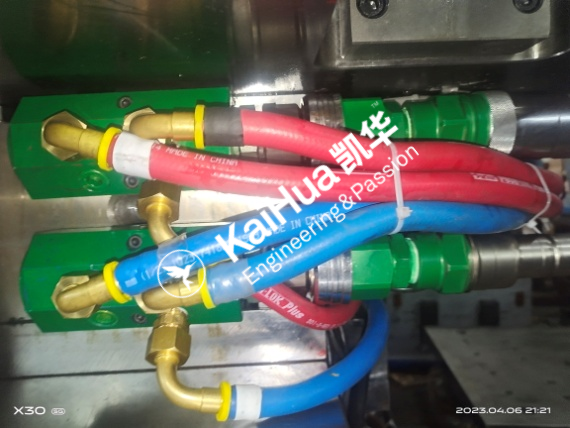

（1）Water Interface

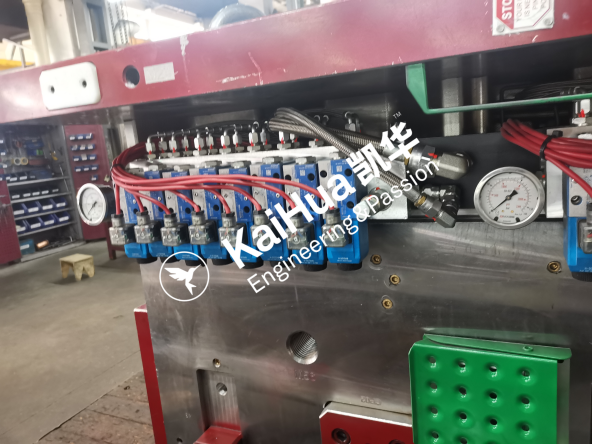

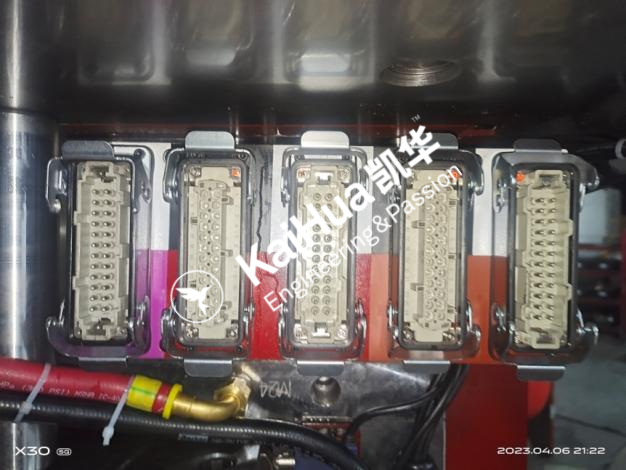

（2）Hot runner socket
4.Product feature and application
（1）Features:
·Masterful Craftsmanship: Kaihua's Air conditioner grille molds transform design blueprints into high-precision products with expert craftsmanship. Whether replicating intricate lattice patterns or smooth contours, our molds ensure consistent, high-quality output for every grille component.
·Optimized for Weight and Strength: Engineered for real-world Air conditioner performance, our injection-molded grilles optimize airflow efficiency while maintaining structural integrity. The precision-designed ventilation channels ensure unrestricted air circulation, while reinforced construction provides superior deformation resistance to withstand diverse operating conditions.
·Economical Efficiency: Through optimized mold design and streamlined production processes, we significantly reduce material waste and cycle times, delivering cost-effective injection molding solutions without compromising premium quality standards.
·Superior Dimensional Fidelity: Precision-controlled mold dimensions ensure perfect fitment between molded grilles and Air conditioner units, minimizing assembly errors while enhancing installation efficiency and overall compatibility.
·Eco-Conscious Design: With a strong commitment to environmental protection, we utilize recyclable materials and energy-efficient processes to meet production demands while reducing resource consumption, supporting sustainable development in the industry.
（2）Applications:
Kaihua's Air conditioner grille molds serve residential, commercial and industrial applications across the HVAC industry. For home air conditioners, we produce split-system and cabinet Air conditioner grilles that combine functional performance with aesthetic appeal, featuring sleek profiles and versatile color options to complement any interior design.
In commercial HVAC systems, our molds manufacture large-scale central Air conditioner grilles that deliver both high-efficiency airflow and durable construction, maintaining reliable performance even under heavy-duty operation.
For Air conditioner manufacturers, whether upgrading existing grille designs, optimizing ventilation structures, or developing new product configurations, Kaihua delivers precision-crafted solutions. Our advanced techniques and customization capabilities ensure dimensional accuracy and production consistency, while innovative designs enhance product competitiveness. A trusted partner for mold engineering excellence in the HVAC industry.
5.Prodect qualification
（1）Production process
· Closing the mold: Close the mold to ensure it is in place.
· Feeding: Add the dried plastic pellets into the hopper of the injection molding machine.
· Melting: Heating the injection molding machine to melt the plastic particles.
· Injection: Molten plastic is injected into a mold through an injection device.
· Pressure holding: Maintain a certain pressure in the mold to fully fill the mold with plastic.
· Cooling: Cooling and solidifying in the mold to shape the plastic.
· Demoulding: Open the mold and remove the plastic product.

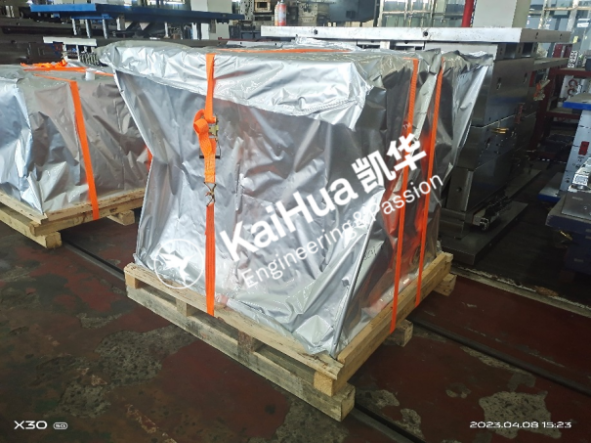

（2）Images of product dispatch and packaging
（3）Technical team
| Responsibilities of project members | Main responsibilities |
| project manager | Supervise the entire project planning and control the quality, time, and cost of the project |
| Quality Manager | Responsible for project quality matters |
| salesman | Responsible for project business and logistics work |
| Design team leader | Responsible for reviewing and guiding product analysis and design, as well as mold structure design |
| Process Supervisor | Responsible for the development of mold production processes and production management |
| Mold Supervisor | Responsible for the research and assembly of molds, as well as guidance on mold technology |
（4）Design review photos
（5）Photos of the Technical Department Meeting

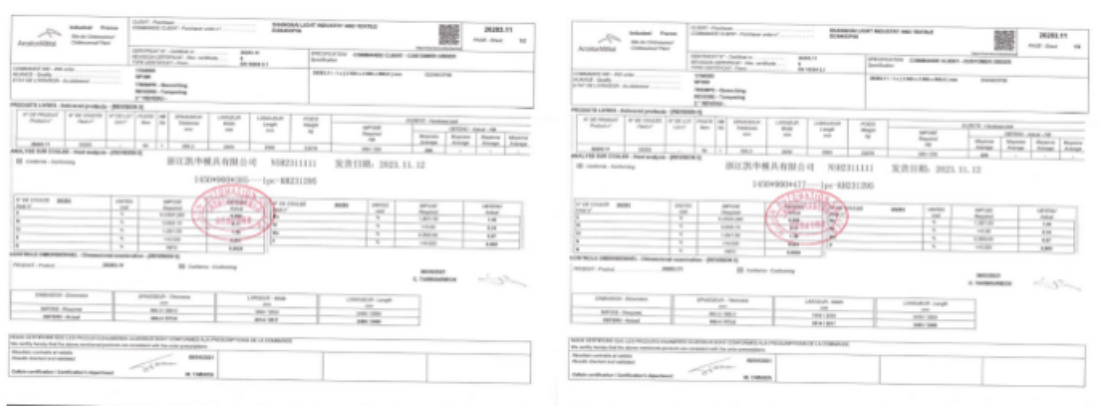

（6）Certificate
7.Kaihua Mould Advantage
Click here,gain a deeper understanding of Kaihua's advantages,experience our professional strength and quality assurance!
