Auto Armrest Box Tooling Armrest Box Mold Automotive Molds
1.Product Introduction
For automotive OEMs, armrest box production often faces three key frustrations: poor mould precision leading to misalignment of hinges and locking mechanisms, which delays mass production due to repeated adjustments; defects in molding processes causing product rattles and uneven wall thickness that harm user experience; and short mould durability that increases long-term costs through frequent maintenance. As an Automotive Mold Maker with 25 years of industry experience, Kaihua Moulds addresses these pain points at the source with our specialized Auto Armrest Box Tooling.
Our Auto Injection Mold For Armrest Box leverage 5-axis machining centers and mold flow analysis technology to avoid molding defects in advance. The tolerance of hinge holes is strictly controlled to ensure seamless adaptation of locking mechanisms, with a first-time assembly pass rate of over 95%. Through Mucell technology and precise temperature control via multiple cooling circuits, we achieve uniform wall thickness of the product, eliminating rattles caused by structural unevenness while meeting lightweight requirements. Key parts adopt insert design with high-quality mold steel, ensuring stable mould service life for a long time and significantly reducing maintenance downtime.
As a professional Automotive Mold solution provider certified to IATF16949, we don't just deliver reliable armrest box moulds, we back them with full-process technical support. This means your moulds maintain consistent performance, production interruptions stay to a minimum, and you get a reliable, long-lasting tool that sets the stage for smooth, high-quality auto interior manufacturing.
Alongside our car airbag molds, you can explore Car Dashboard Mould and Car Door Panel Injection Mold with Stack Mould Technology, designed to meet the precise requirements of your automotive production projects.
2.Product Display
| Product Name | Auto Armrest Box Mold |
| Plastic Material | PP,EPDM,TD20, CYCOLAC ABS, Customized |
| Injection Molding Machine Tonnage | 90T, 250T, 320T, 450T, 600T, 800T, Customized |
| Number of Mold Cavities | 1, 1*2, 1/Jan/00, AS4, Customized |
| Mold Material | 1.2344/1.2343,1.2738HH,1.2738,718H,P20HH, Customized |
| Grain/Finish | Leather Grain, Painted, Customized |
| Hot Runner Brand | YUDO, HTS, HRS, Sinac, Customized |

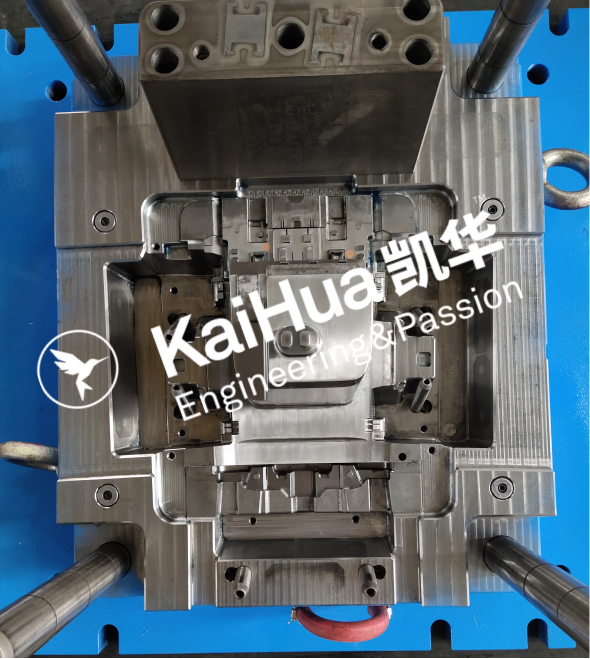

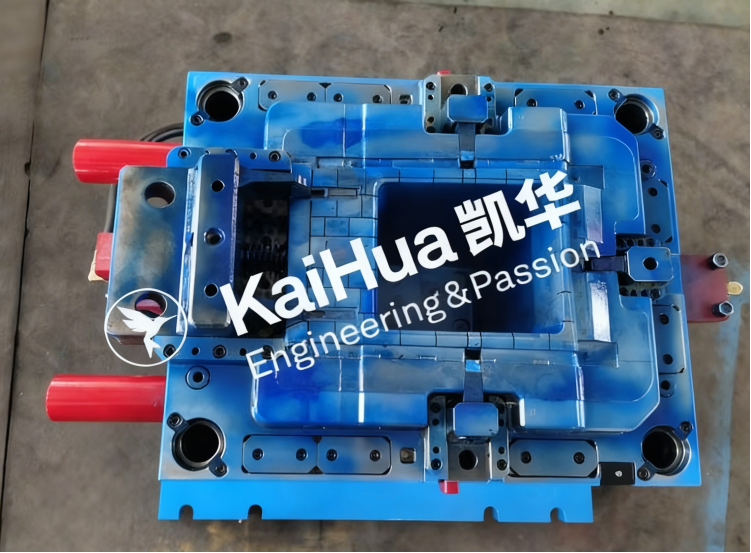

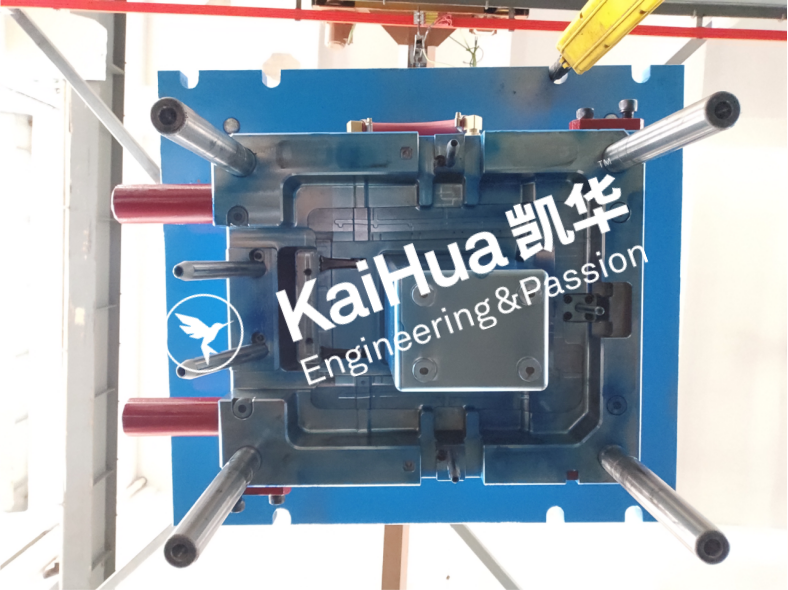

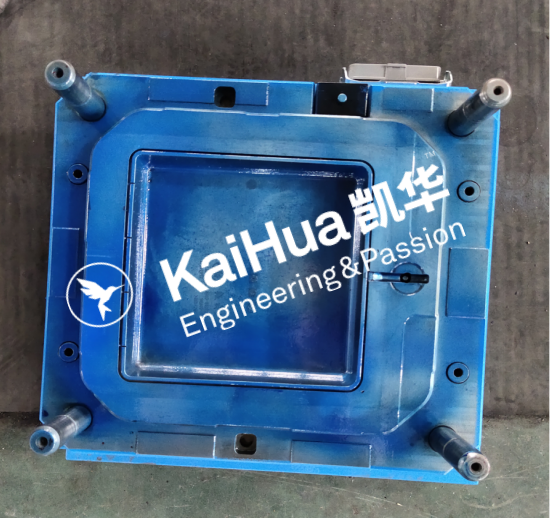

3.Production details
4.Product feature and application
(1) Product feature
1. Precision-Fit, From Design to Reality
Our Auto Armrest Box Tooling incorporates perfectly machined mounts for dampers and locks, ensuring your armrest aligns flawlessly with vehicle hinges—eliminating post-production adjustments and accelerating assembly.
2. Durability That Powers High-Volume Runs
As a trusted Injection Mold Manufacturer, we build every Auto Injection Mold for Armrest Box with premium, wear-resistant steel. This focus on robust construction extends mold life dramatically, reduces unscheduled downtime, and protects your production schedule.
3. Aesthetic Consistency Across Interior Components
Leveraging our deep Car Interior Mold expertise, we achieve surface finishes that are burr-free and perfectly match your specified grain and texture. We ensure every armrest—and every interior component we mold—seamlessly integrates into the vehicle's cabin.
4. Smarter Maintenance, Maximized Uptime
Our Auto Injection Mold for Auto Arm Rest Box features a smart, modular architecture. It enables quick swapping of specific components without full disassembly, simplifying maintenance and maximizing production uptime across your operations.
5. Process-Adaptable for Any Material Challenge
Whether you specify standard PP or advanced engineered materials, our Auto Injection Mold For Auto Plastic Armrest is built for adaptability. We fine-tune the process to ensure dimensional stability and consistent quality, meeting all required automotive standards.
6. Fit & Function Validated Before Cutting Steel
As your engineering partner, we use CAE simulation to virtually validate every Plastic Car Mold we build. This process confirms that the final armrest will fit perfectly within the console and dashboard environment, ensuring uniform gaps and eliminating fitment risks.
(2) Product application
● From DFM to Mass Production: We partner with you from the concept stage. Our early DFM report and Moldflow analysis de-risk projects, reducing costly design iterations and ensuring a smooth, fast transition to stable mass production.
● Integrated Tooling for Tier 1s & OEMs: As a strategic partner to leading brands, we manage the complete Injection Mold lifecycle for complex modules and systems, ensuring all components fit together perfectly.
● Accelerated Development Cycles: Our engineering-focused approach, powered by upfront simulation, allows for rapid design validation and mold optimization, significantly speeding up your overall time-to-market.
● Excellence in High-Volume Execution: Our core expertise lies in designing and building Auto Injection Molds that deliver unwavering stability, reliability, and efficiency for the most demanding production schedules.
● Our Comprehensive Mold Portfolio
Demonstrating our capacity as a full-service Automotive Mold Maker, we produce precision molds for a wide range of automotive components:
Interior Molds: Glove Box Tooling, Dashboard Molds, Door Panel Molds, Pillar Molds
Exterior Molds: Bumper Molds, Grille Molds, Trim Molds
Lamp System Mold: Car Lamp Molds
Under-Hood & Structural Molds: Component Housings, Functional Parts
5.Kaihua Service
Choosing Kaihua means gaining more than a mold supplier — you gain a global partner:
● Engineering & Design Support – Our team provides in-house mold flow analysis and DFM consulting to help optimize airbag cover parts and injection molds for better performance and manufacturability.
● Turnkey Mold Solutions – From concept and prototyping to mold validation and full-scale production, we manage the entire process for a smooth and efficient delivery.
● Lean & Efficient Manufacturing – Using KMS and KMVE systems, we reduce waste, control costs, and ensure consistent high-quality molds without compromising performance.
● Post-Sales Training & Support – We offer on-site and online training for client teams on mold operation, maintenance, and troubleshooting, helping extend mold life and maximize production reliability.
● Kaihua's after-sales network spans worldwide, with full second-stage service support in Europe, North America, Thailand, and Malaysia, etc. Click to learn more about how Kaihua supports you after delivery.
At Kaihua, we are committed to delivering reliable, cost-efficient, and innovative Car Air Bag Mold solutions that support our customers' long-term success.
6.Product qualification
（1）Car Armrest Box Mold Trial Process
Kaihua's custom plastic injection moulds are purpose-built for automotive applications, with a focus on manufacturing Armrest Box. Engineered for high-volume production, these moulds guarantee consistent quality and precision across every unit—making them an ideal choice for manufacturers aiming to produce pillar car parts that balance durability, structural integrity, and functional efficiency, suitable for a wide range of vehicle models.

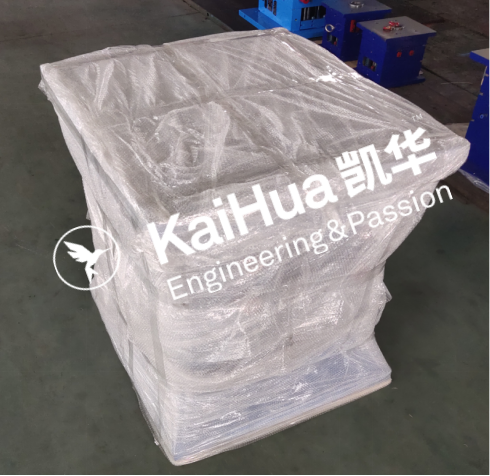

（2）Product shipment and packaging photos
(4) Design review photos
(5) Photos of the Technical Department Meeting
(6) Certificate
To learn more about Kaihua's certificates, please click here
7.Kaihua Mould Advantage
9.FAQ
Frequency Asked Questions
Q: Can you do the finished product or parts Only?
A: Sure, We could do finished product according the customized mold. And make the mold also.
Q: Can I test my idea/product before committing to mould tool manufacture?
A: Sure, we can use CAD drawings to make models and prototyping for design and functional evaluations.
Q: Can you do Assemble?
A: Of cause we could do. Our factory with assembly room.
Q: What shall we do if we do not have drawings?
A: Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
Q: What type of mould tool do I need?
A: Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
Q: I have an idea for a new product, but not sure if it can be manufactured. Can you help?
A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
Welcome your inquires and emails.
All inquires and emails will be replied within 24 hours.
