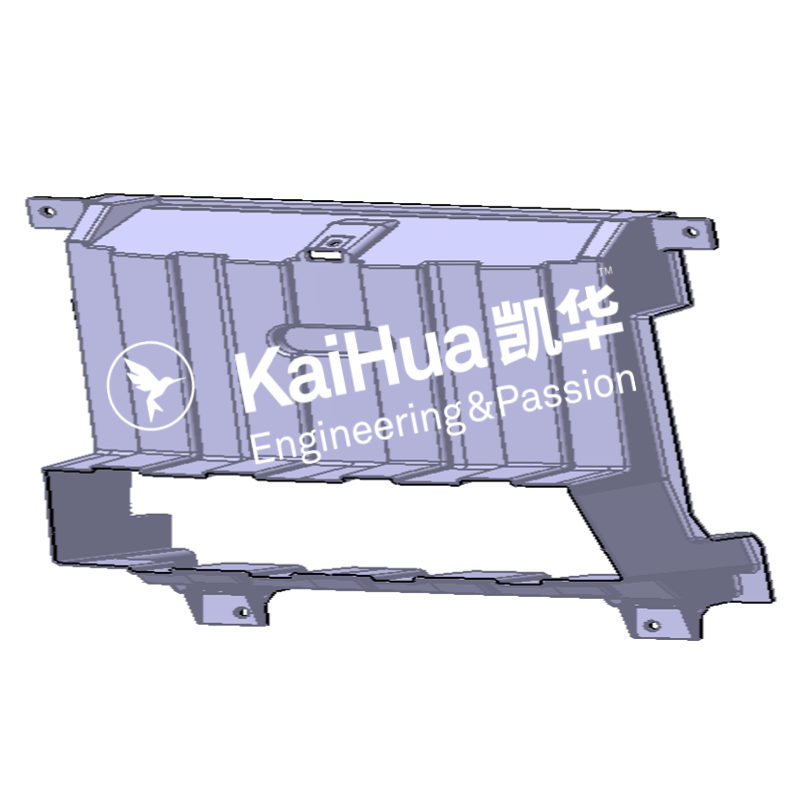

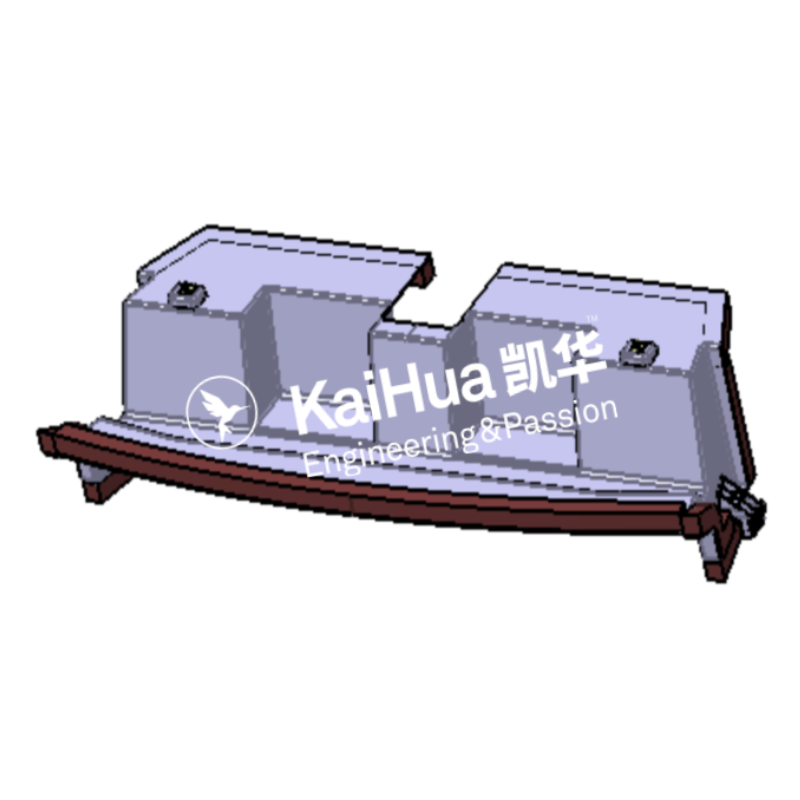

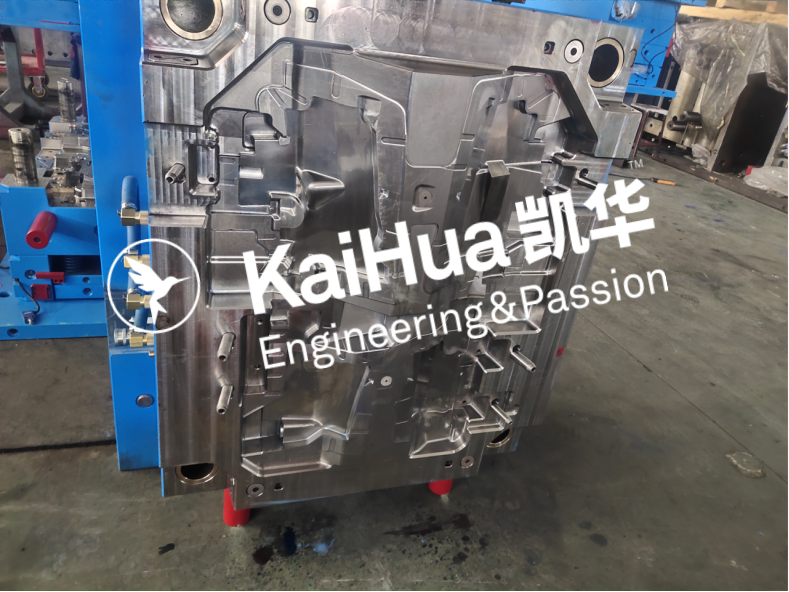

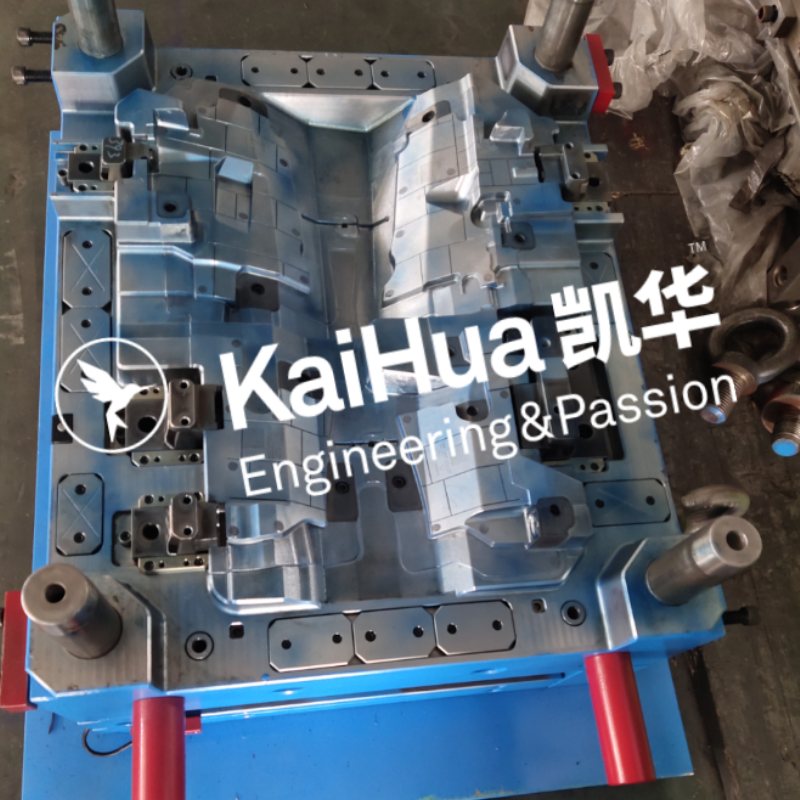

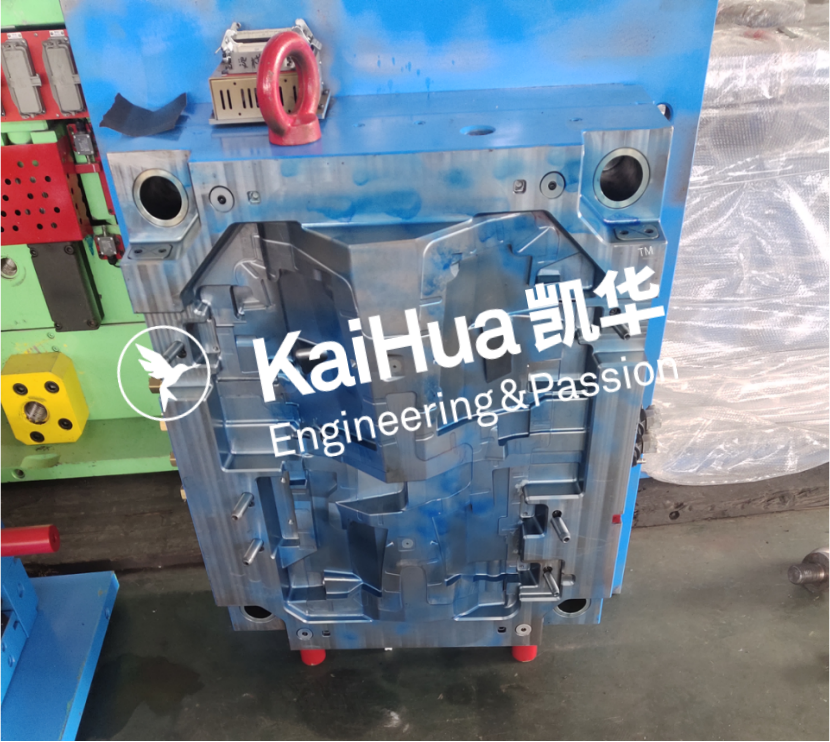

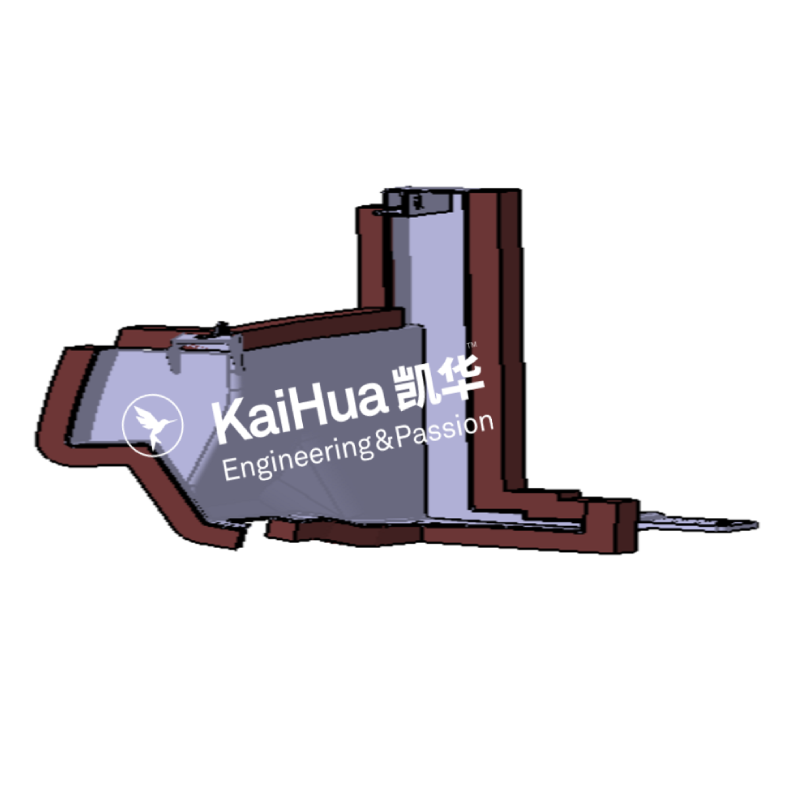

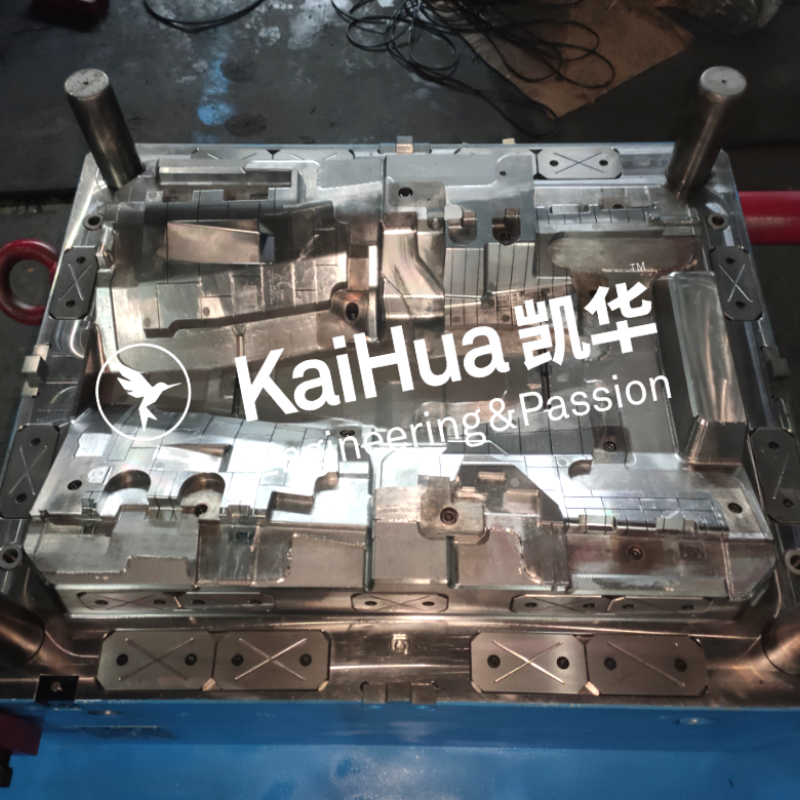

Automotive Radiator Air Guide Injection Mould Car Part Mold

（1）Product feature

●Collaborative DFM Process

Every automotive radiator air guide mold begins with a detailed Design for Manufacturing(DFM) analysis. Our engineering team collaborates closely with clients to refine part geometry, gate positioning, and ejection systems for optimal manufacturability. Comprehensive moldflow simulations predict filling behavior, cooling performance, and potential warpage zones—allowing us to validate and optimize the design before any tooling begins.

●Advanced Flow Path Engineering

Each mold incorporates a custom-engineered hot runner system with pressure-controlled sequencing to ensure consistent melt flow and balanced cavity filling. Our rheologically optimized runner layouts eliminate flow lines and reduce orientation-induced warpage, ensuring dimensional accuracy and maintaining the aerodynamic integrity of the final component.

●Precision Thermal Management

Our molds integrate custom-configured conformal cooling circuits, produced through laser sintering technology, to deliver uniform heat extraction from complex curved surfaces. This tailored thermal design improves cooling efficiency, reduces cycle time by up to 20%, and maintains dimensional stability within±0.4 mm under varying production conditions.

●Production-Optimized Service Design

Each mold is delivered with customized maintenance documentation and operator training aligned to the client's production environment. We integrate sensor-ready interfaces compatible with Industry 4.0 monitoring systems, enabling real-time performance tracking and a seamless transition from sampling to mass production.

（2）Product application

●Customized Engine Cooling Solutions

Kaihua's automotive radiator air guide molds produce application-specific components for engine cooling modules, precisely engineered to meet the airflow dynamics and packaging constraints of each vehicle platform. Our solutions have been successfully implemented in global programs for Ford and Volkswagen, demonstrating consistent quality and performance across diverse engine configurations.

●EV Thermal System Integration

For electric vehicles, our molds manufacture customized air guidance components for battery thermal management and power electronics cooling. Each design is optimized to achieve specific thermal performance targets and integrate seamlessly within the compact spatial layouts of modern EV architectures.

●Flexible Platform Implementation

Leveraging modular design methodologies, Kaihua molds can be adapted to a wide range of vehicle platforms and production scales. This approach ensures uniform performance and efficiency while meeting each client's unique quality, validation, and volume requirements.

Full-Service Technical Partnership

Beyond mold manufacturing, Kaihua provides a complete technical partnership. Our support includes production startup assistance, operator training and certification, and lifetime maintenance services. A global spare parts network ensures rapid service response, minimizing downtime and sustaining long-term manufacturing reliability for OEM clients.
