Car Grille Injection Mold Automotive Radiator Grille Tooling Mold
1.Product Introduction
Kaihua Moulds has deep expertise in the injection mold sector, offering end-to-end services ranging from demand communication, DFM reports and recommendations, to precision manufacturing, mold testing & debugging, and after-sales maintenance.Our injection molds are made of high-purity, high-quality steel, undergo strict inspection and heat treatment, and are designed with refined modeling via UG and SolidWorks. This ensures long service life (reducing replacement frequency), precise dimensional control, consistent plastic parts in mass production, and fewer defects.
For common plastic part flash, we use high-precision equipment to check clamping accuracy, polish parting surfaces, and match clamping force. To address deformation from uneven cooling, our engineers optimize cooling channel design, select high thermal conductivity materials, and adjust channel density based on plastic part wall thickness—enhancing molding quality.
We provide customized single/multi-cavity injection molds, and our professional after-sales team offers remote guidance or on-site debugging to help customers reduce failures and boost efficiency.
Additionally, two of Kaihua’s standout Automobile Plastic Injection Molds—namely the Front Foglamp Decorative Frame Injection Mould and Headlight Cover Mould-Double Color Mould—have earned wide acclaim throughout the industry.
2.Product Display
|
Product Name |
FRT BPR ASSY LOWER GRILLE |
|
Plastic material |
PP-EPDM-T30 |
|
Injection molding machine tonnage |
650T |
|
Number of mold cavities |
1*1 |
|
Mold material |
T51620 |
|
Grain or electroplate |
Grain |
|
Automatic demolding requirements |
Robot |
|
Hot Runner Brand |
Yudo |

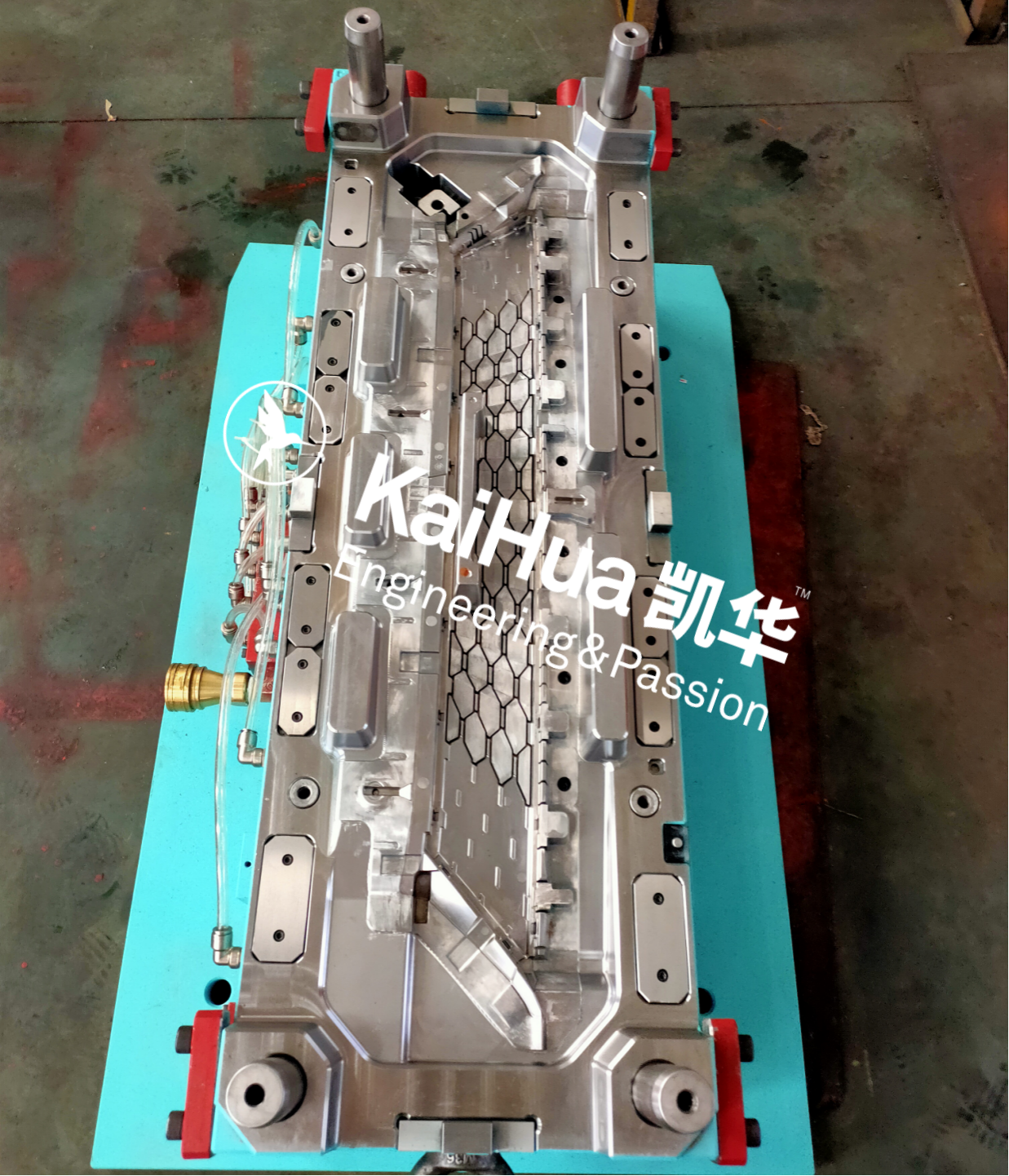

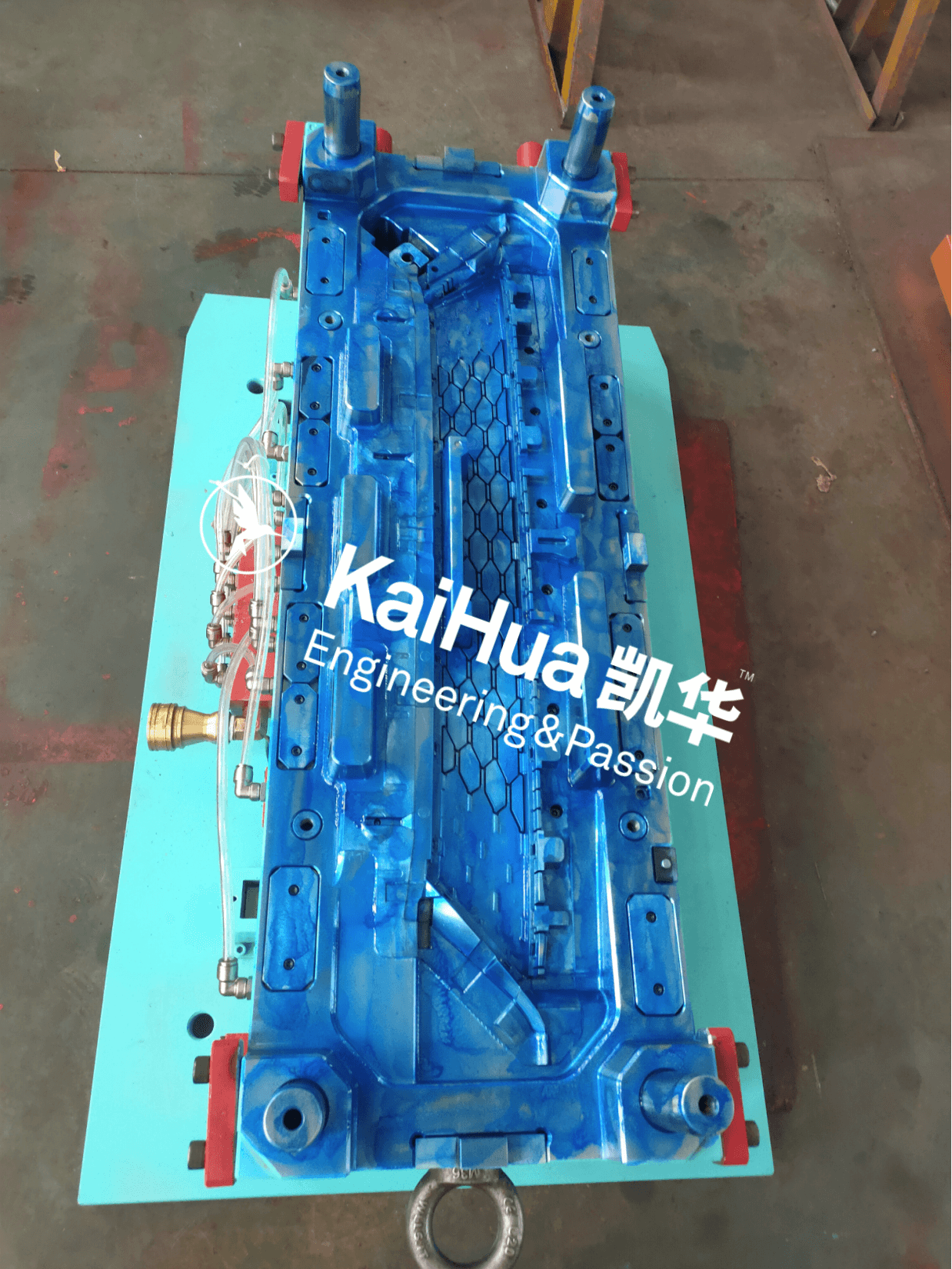

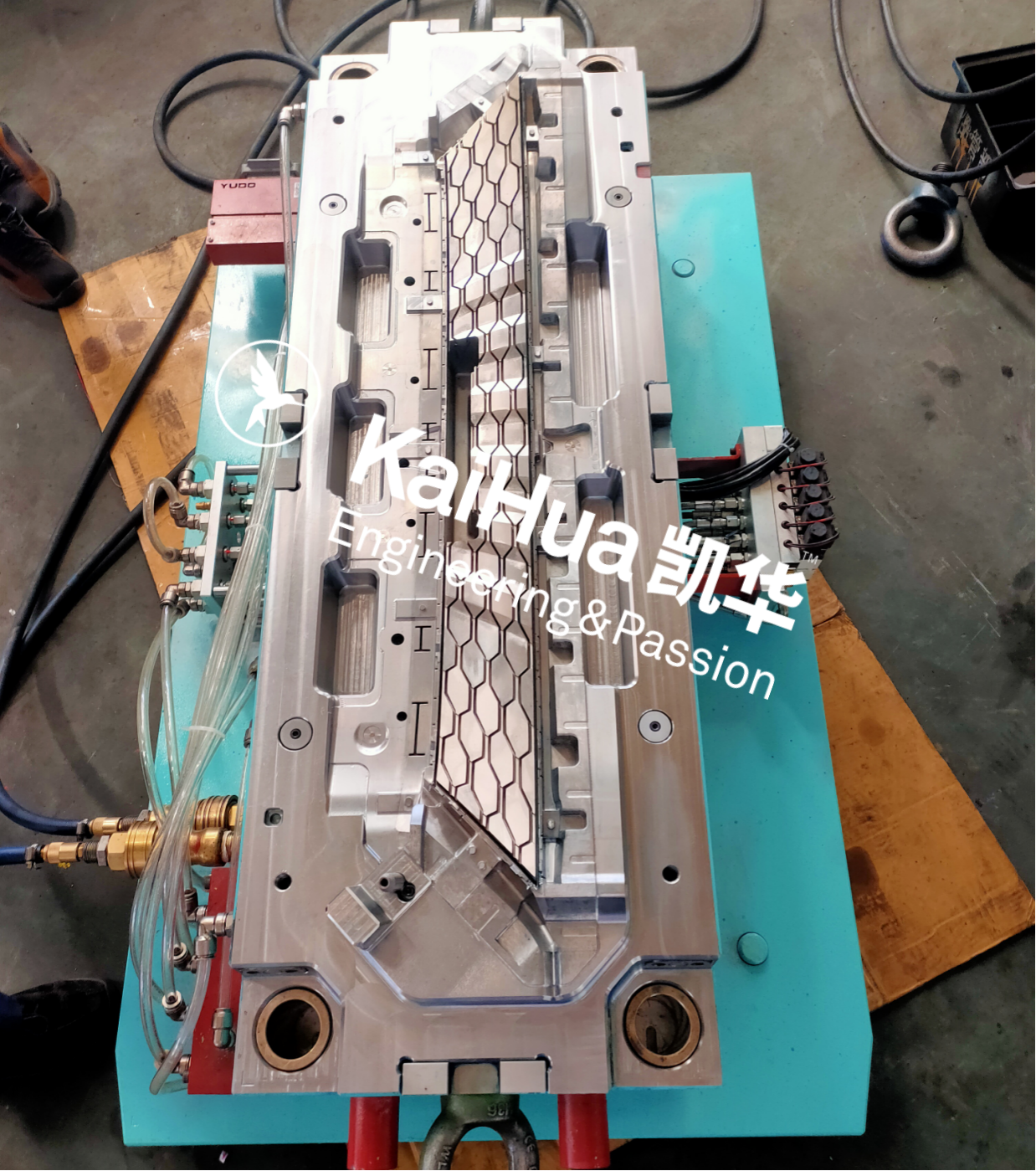

3.Production details
4.Product feature and application
(1) Product feature
● We adopt high-grade materials including P20, 718, H13, 2344, and S136—each featuring specific hardness performance and mould service life. This premium material configuration ensures outstanding durability of our moulds and stable efficiency in mass production, laying a solid foundation for consistent product quality.
● Our professional engineering team leverages advanced design software such as UG, PROE, CAD, and SolidWorks. By integrating rich industry experience with precise digital tools, we ensure every mould is designed and manufactured in strict accordance with clients’ exact specifications, achieving high-precision matching with production requirements.
● We offer tailored mould customization services, supporting both single-cavity and multi-cavity mould designs. Meanwhile, we provide optional hot runner or cold runner configurations based on different product production needs, fully adapting to diverse production scenarios in automotive, logistics, household, and home appliance industries.
● Backed by mature manufacturing processes and premium materials, our moulds boast an excellent service life. This long service cycle greatly reduces the frequency of mould replacement for clients, effectively lowering production costs and delivering remarkable return on investment.
● We provide all-round after-sales support for our clients, including lifelong technical consultation services. Our team ensures timely responses to client inquiries, keeps clients updated on mould production progress regularly, and offers professional assistance in mould testing, debugging, and subsequent modification needs, solving potential issues throughout the mould usage cycle.
(1) Product application
● OEM Car Bumpers – Mass-produce front and rear bumpers with precise fit.
● Custom & Performance Bumpers – Limited edition or aftermarket designs using Car Bumper Moulds.
● Integrated Body Kits – Produce multiple coordinated bumper components with Auto Parts Molds.
● Prototyping & Small Batches – Rapid tooling for new designs or concept vehicles.
● High-Volume Production – Scalable Auto Bumper Moulds for large-scale manufacturing.
Benefits: Consistent part quality, reduced waste, and flexible production for standard or custom bumpers.
6. Prodect qualification
（1）Carbon Fiber Bumper Plastic Injection Mold Trial Process
Kaihua’s custom plastic injection moulds are purpose-built for automotive applications, with a focus on manufacturing vehicle air grilles. Engineered for high-volume production, these moulds guarantee consistent quality and precision across every unit—making them an ideal choice for manufacturers aiming to produce air grilles that balance durability, visual appeal, and functional efficiency, suitable for a wide range of vehicle models.
(2) Product shipment and packaging photos
(3) Design review photos
(4) Photos of the Technical Department Meeting
(5) Certificate
To learn more about Kaihua's certificates, please click here
7.Kaihua Mould Advantage
Top Partner
Frequency Asked Questions
Q: Can you do the finished product or parts Only?
A: Sure, We could do finished product according the customized mold. And make the mold also.
Q: Can I test my idea/product before committing to mould tool manufacture?
A: Sure, we can use CAD drawings to make models and prototyping for design and functional evaluations.
Q: Can you do Assemble?
A: Of cause we could do. Our factory with assembly room.
Q: What shall we do if we do not have drawings?
A: Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
Q: What type of mould tool do I need?
A: Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
Q: I have an idea for a new product, but not sure if it can be manufactured. Can you help?
A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
