Refrigerator Plastic Injection Mold

Short Description:

Kaihua Moulds, a leading Chinese refrigerator plastic mold manufacturer, provides high-quality injection molds for refrigerator drawers, refrigerator Tray, and other appliance components. With expertise in home appliance injection moulding and refrigerator manufacturing, we ensure reliable refrigerator molding solutions with fast delivery, consistent quality, and full lifecycle support, trusted by top global brands.

Send email to us

Product Detail

Product Tags

1.Product Introduction

Kaihua Moulds, founded in 2000, is a leading refrigerator plastic mold manufacturer with over two decades of expertise in fridge injection molds for the home appliance sector. Its molds for refrigerator critical components are widely recognized for precision, durability, and seamless assembly. With a dedicated refrigerator mold production facility, Kaihua can manage multiple molds for a single customer, covering different components of the same refrigerator, ensuring compatibility across the entire unit, reducing assembly adjustments, and shortening project lead times.

From project initiation, Kaihua's professional team collaborates closely with clients' existing designs, providing thorough analysis and optimization to guarantee manufacturability, functional performance, and assembly consistency. Supported by a design team of over 200 engineers, a dedicated project management department, and professional business personnel for client coordination, every project benefits from streamlined communication, efficient progress control, and minimal effort required from the customer. Advanced production equipment and integration with premium supply chain partners further ensure high-quality refrigerator molding with strict tolerances, consistent wall thickness, and long-term durability.

Trusted by leading global brands such as Haier, Midea, and Bosch, we offer plastic refrigerator door Panel injection molds, plastic refrigerator drawer injection mold solutions, and other critical components with guaranteed quality and repeatable performance. Supported by a global service network, premium supply chain partners, and full lifecycle support from design review to trial runs and maintenance, Kaihua ensures reliable delivery and optimized production costs for every project.

Partner with Kaihua to streamline refrigerator injection moulding and secure high-quality molds that are durable, precise, and fully compatible with your design requirements.

2.Case Product Parameters

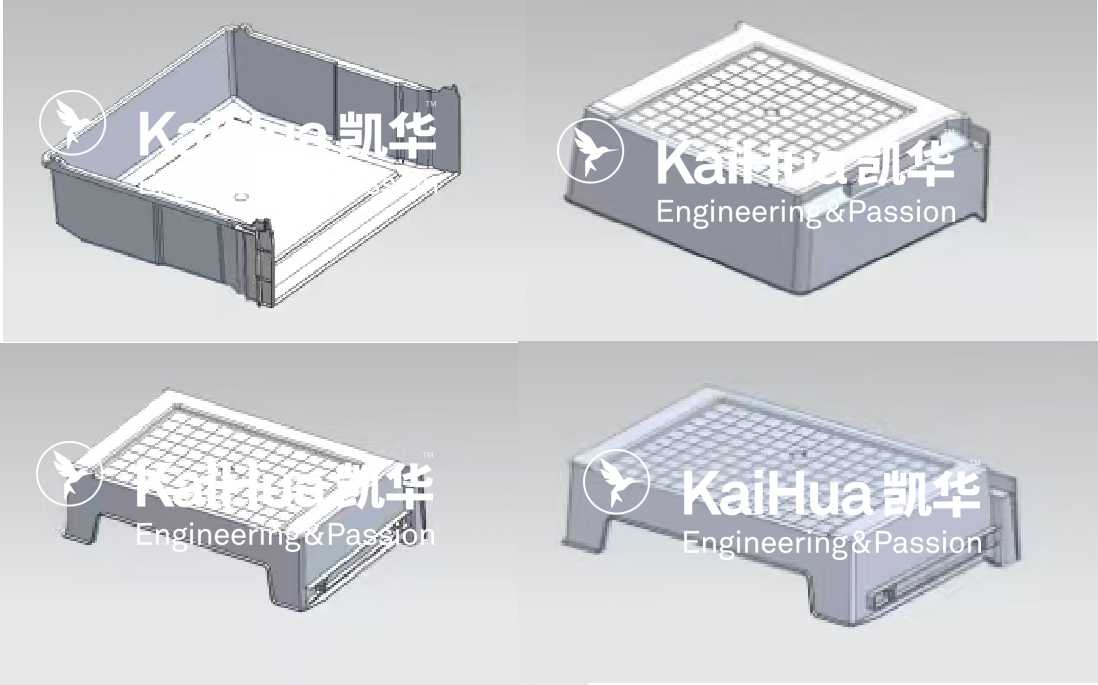

Product Name	Refrigerator Drawer Mold
Plastic material	ABS
Product size	680X310X380
Mold size	1500X680X840
Injection molding machine tonnage	800
Number of mold cavities	1
Grain or electroplate	Polishing
Automatic demolding requirements	gripper

Product Name	Refrigerator Front Air Diffuser Mold
Plastic material	ABS
Product size	774X488X91
Mold size	1000X750X880
Injection molding machine tonnage	800
Number of mold cavities	1X1
Grain or electroplate	Mirror
Automatic demolding requirements	Auto Ejection

Product Name	Refrigerator Fan Support Mold
Plastic material	ABS
Product size	228X149X45
Mold size	550X400X400
Injection molding machine tonnage	250
Number of mold cavities	1X2
Grain or electroplate	Polishing
Automatic demolding requirements	Auto Ejection

Product Name	Refrigerator Pallet Basket Mold
Plastic material	PP+CA40
Product size	416X362X137
Mold size	750X650X815
Injection molding machine tonnage	1000
Number of mold cavities	1
Grain or electroplate	Polishing
Automatic demolding requirements	gripper

3.Production details

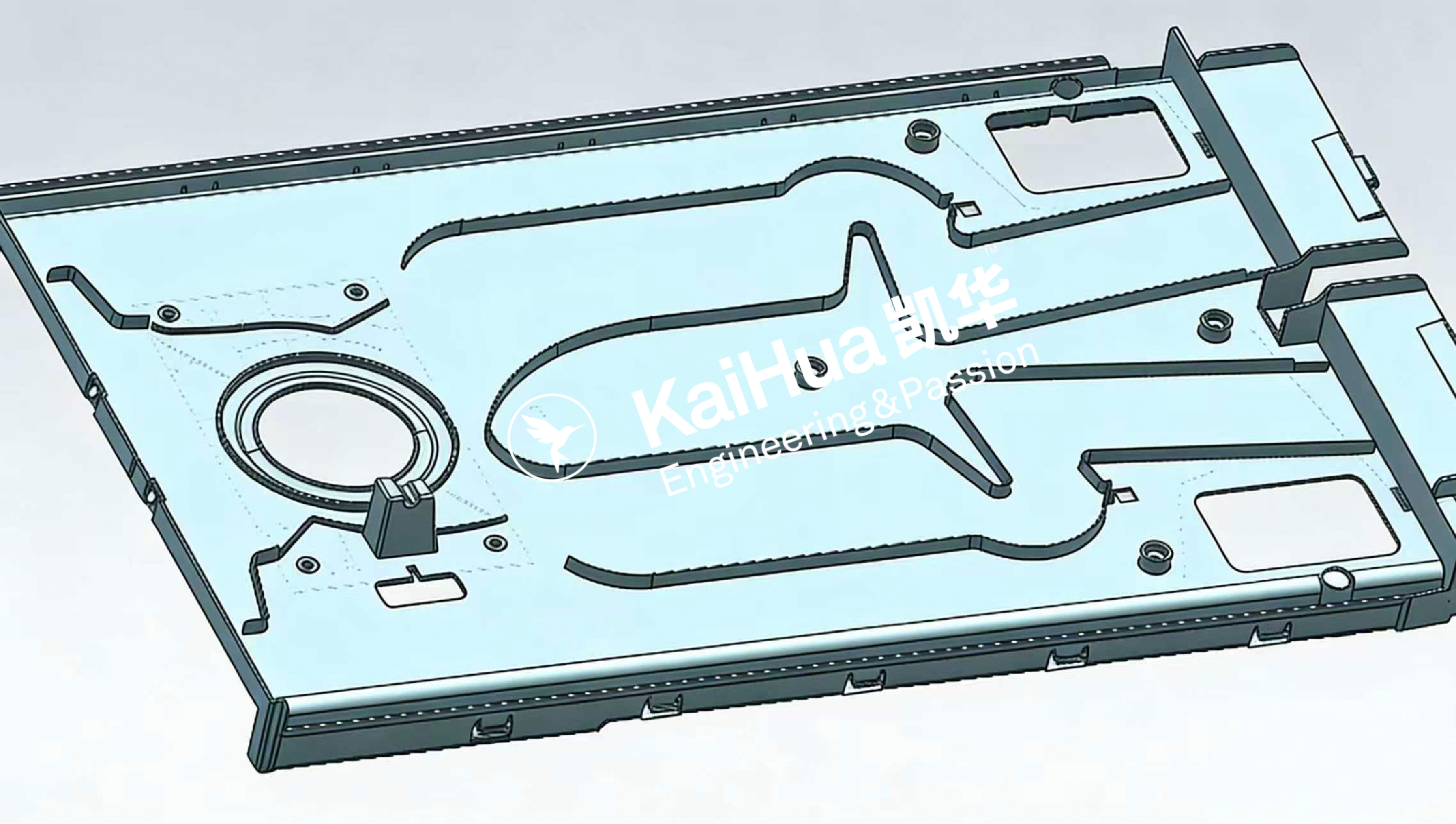

Home Appliance Injection Mold Custom Refrigerator Air Diffuser Molding Dies for OEM Factories

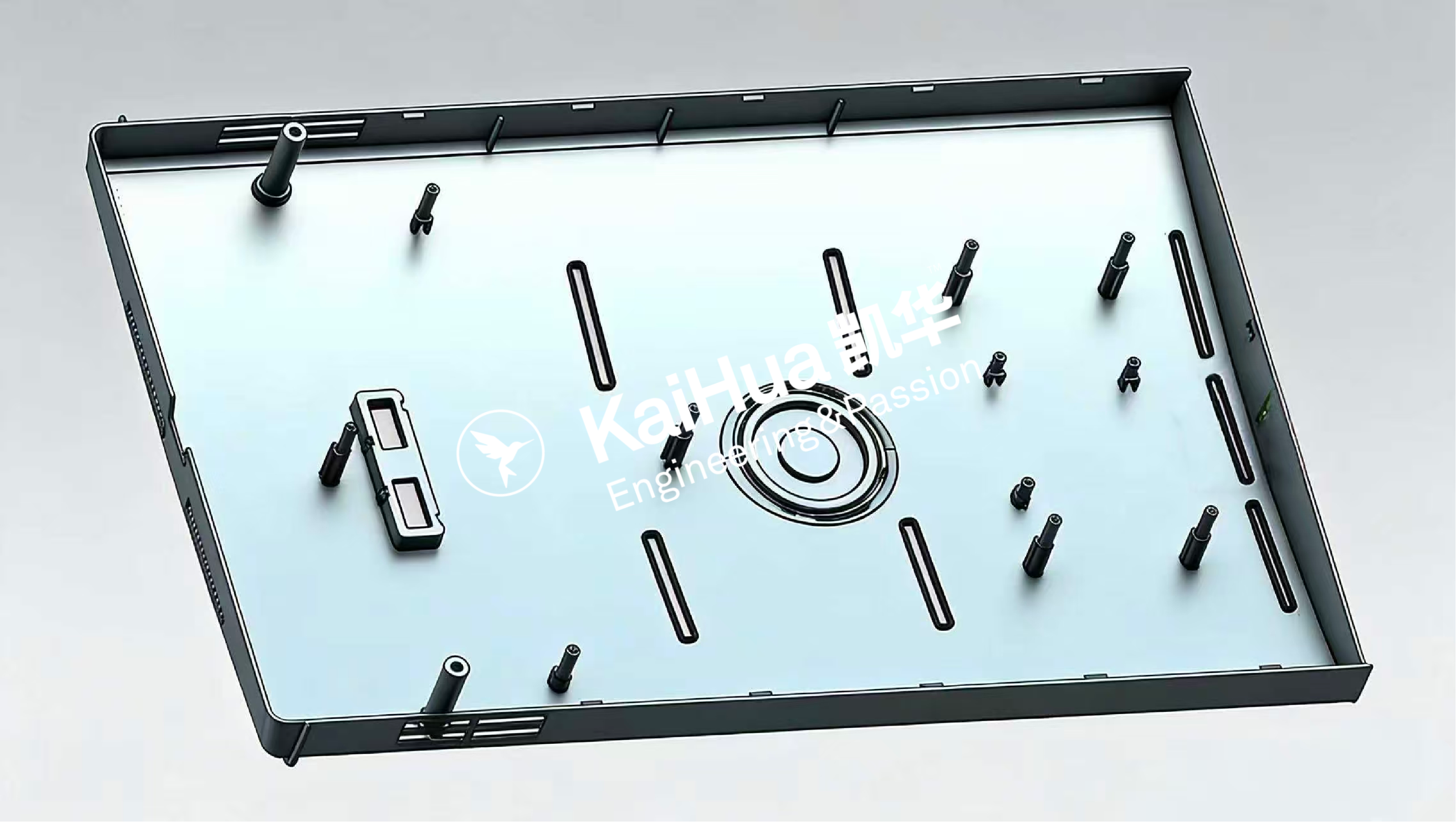

Refrigerator Ventilation Parts Mold Precision Air Diffuser Injection Molds for Kitchen Appliances

efrigerator Injection Molds Manufacturer – High-Precision Plastic Moulds

4.Product feature and application

（1）Product Feature:

As an experienced OEM manufacturer, Kaihua Mould delivers specialized refrigerator injection mould solutions engineered to address the structural, environmental, and production challenges unique to refrigerator manufacturing.

● Low-temperature application reliability

Refrigerator components operate for extended periods in cold environments. Kaihua's fridge injection mold designs account for material behavior at low temperatures, supporting stable part strength, dimensional reliability, and long-term performance in refrigerated conditions.

● High-precision structure and assembly accuracy

Refrigerator injection moulds can be designed with precisely machined cores, positioning features, and guiding structures to ensure accurate alignment between adjacent refrigerator parts. This improves assembly consistency with rails, seals, liners, and adjoining components, reducing on-line adjustments during refrigerator manufacturing.

● Enhanced durability and surface performance

For refrigerator parts subject to frequent contact, sliding, or load-bearing, mold cavity surfaces can be optimized to maintain surface quality and structural durability throughout high-cycle production, supporting consistent appearance and functional performance.

● Balanced cooling for complex refrigerator parts

Refrigerator components often feature uneven wall thickness and complex geometries. Kaihua designs targeted cooling layouts within the refrigerator injection mould to improve temperature balance during forming, helping minimize deformation, sink marks, and internal stress while supporting stable cycle times.

● Integration of functional and design details

Functional elements such as handles, drainage features, ventilation openings, or identification marks can be integrated directly into the home appliance injection mould, reducing secondary processing and improving overall production efficiency.

● Manufacturing-oriented mold design

Kaihua's refrigerator moulds can incorporate standardized interfaces and production-friendly structures to support stable operation, efficient mold changes, and consistent output across different refrigerator models within the same production line.

（2）Product Application:

● Household Refrigerator Manufacturing

Kaihua's refrigerator injection mould solutions support large-scale production for Tier-1 home appliance manufacturers. The moulds are compatible with various refrigerator platforms, capacities, and interior layouts, helping ensure consistent assembly fit, stable quality, and efficient manufacturing across multiple models.

● Commercial Refrigeration Equipment

For supermarkets, catering, and professional cold storage applications, Kaihua's fridge injection mold solutions are designed for high-frequency use and long service life. They support both standard and specialized commercial refrigerator structures, ensuring reliable performance under demanding operating conditions.

● Multi-Component Refrigerator Programs

As a professional home appliance injection mould supplier, Kaihua can undertake multiple molds for different components within the same refrigerator system. This integrated approach improves part compatibility, reduces coordination complexity, and accelerates project execution for refrigerator manufacturers.
