Automotive Interior Door Panel Injection Mould
1. Product Introduction
Focused on high-end automotive tooling, Kaihua Mould develops reliable Car Door Panel Automotive Mold and Car Door Panel Automobile Mold, top-tier Car Door Panel plastic Mold built with large-size precision machining, lightweight structural design and premium Class-A surface standards, fully matching strict mass-production standards for automotive interior and exterior components.
As a long-term cooperative supplier for worldwide auto OEMs and Tier 1 factories, our manufacturing capacity covers all types of Automotive Molds and Interior Automotive Mold, alongside professional Car Interior Mold. Besides standard Car Door Panel Mould, we deliver diversified tooling schemes to balance structural durability and exquisite interior appearance for all passenger cars, SUVs and new energy vehicles.
Every set of our Car Door Panel Mould is optimized for high-volume Door Panel Molding and Door Panel Moldings. It stably produces high-strength Automobile Plastic Part with ultra-precise unified dimensions and steady surface presentation, bringing smooth, efficient long-run molding cycles for complicated component production lines. Supported by 20+ years of automotive industry accumulation and a professional team of over 200 engineers, we offer fully personalized Automotive Injection Moulds customized to your unique vehicle development demands.
We provide full-cycle one-stop technical support to lift your overall Door Panel Molding efficiency, accelerate molding cycles and maintain stable mold performance throughout long-term mass production.
Beyond the car door panel molds introduced above, you can also explore our Automotive Light Housing Injection Mold and Car Bumper Mould – two more automotive component solutions tailored to meet your specific needs.

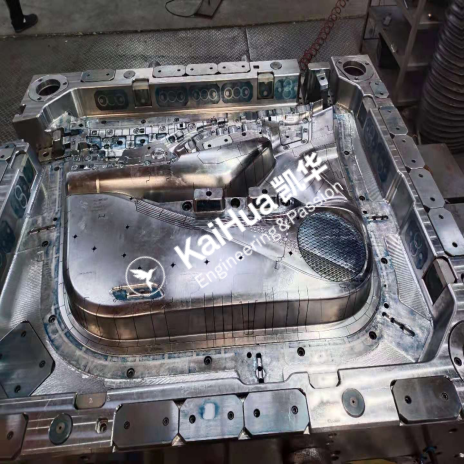

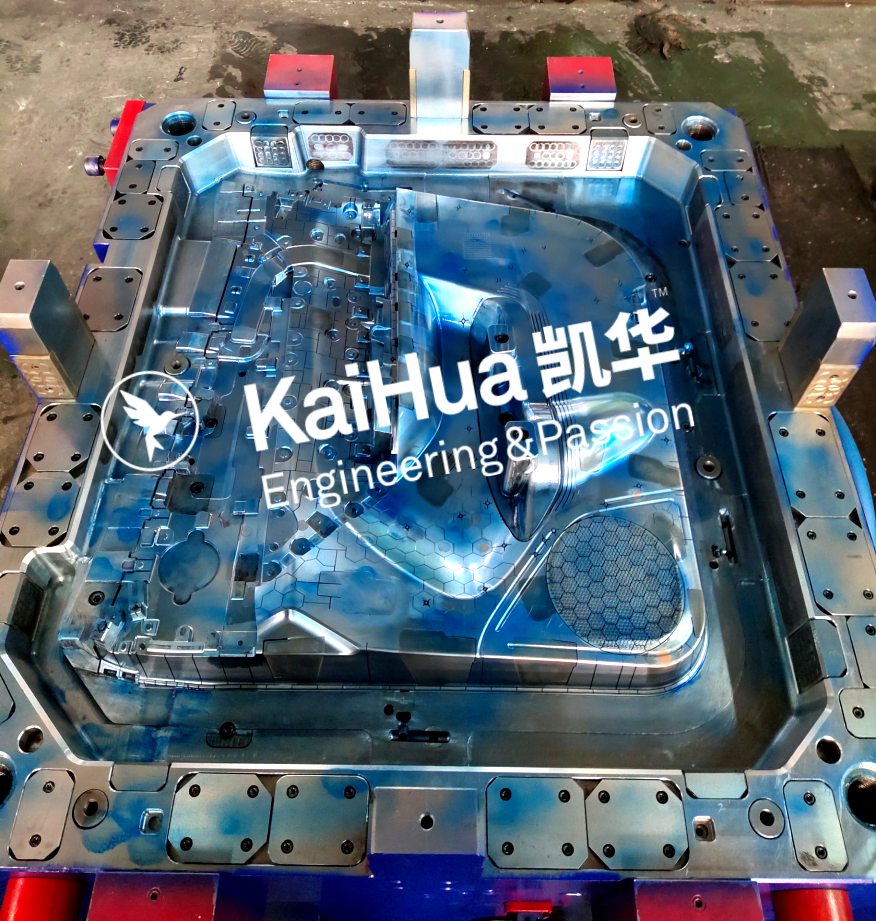

2. Product Display

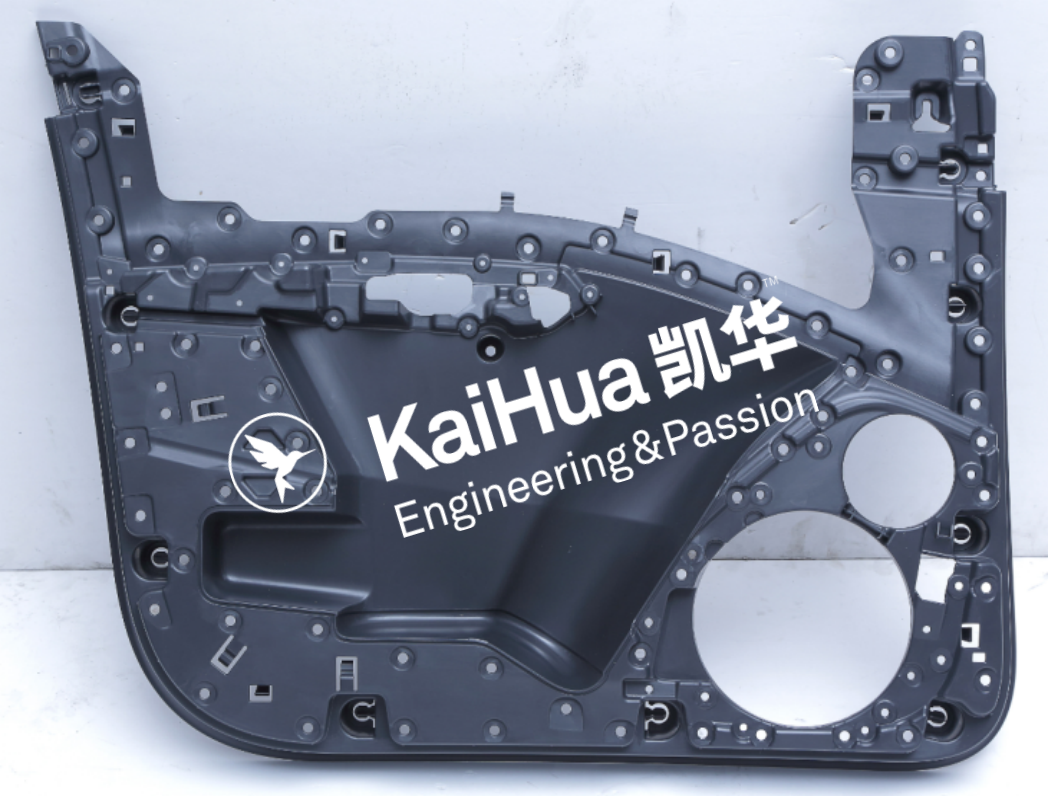

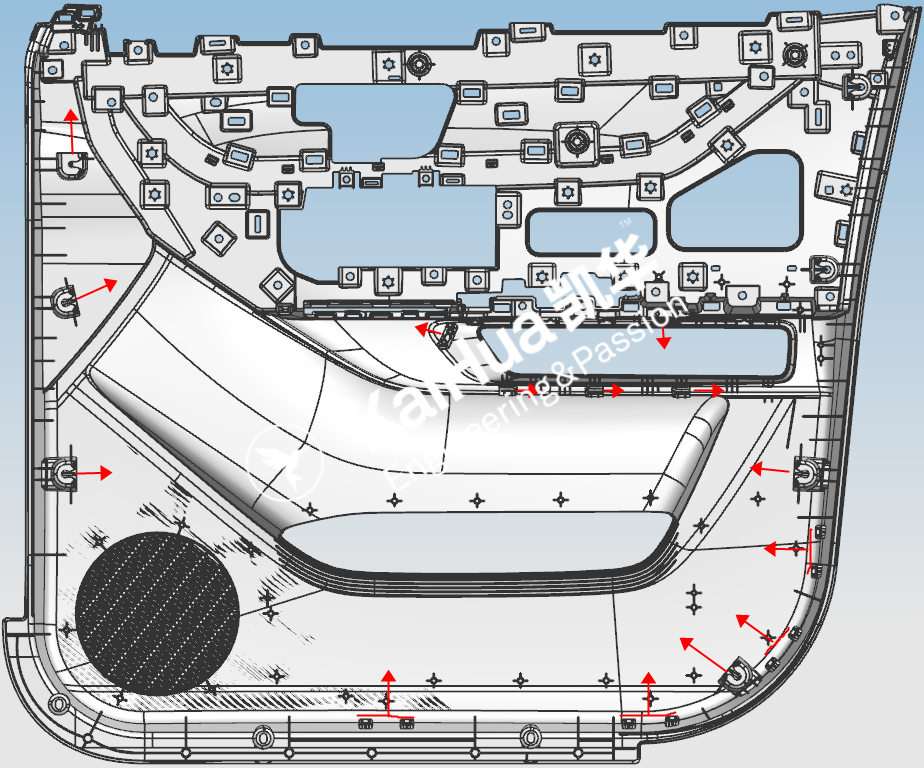

| Part Name | left rear door inner panel |
| Mold size | 1450X1300X1130 |
| Mold weight(t) | 1.18 |
| Product size(mm) | 783X631X140 |
| grain or electroplate | Grain |
| Demolding requirement | Gripper |
| Product materials | PP+EPDM-T20 |
| Injection Machine(t) | 1600 |
| cavity number | 1+1 |
| Part Name | Left/Right front door center trim panel |
| Mold size | 1150X850X840 |
| Mold weight(t) | 5.479 |
| Product size(mm) | 823X232X66 |
| grain or electroplate | Covering |
| Demolding requirement | Gripper |
| Product materials | ABS |
| Injection Machine(t) | 1000 |
| cavity number | 1+1 |
Production details
1. Product feature and application
(1) Product feature
l Unmatched Accuracy
Our imported 5-axis machining equipment delivers micron-level precision for large-size Car Door Panel plastic Mold and Car Door Panel Automotive Mold. Every mounting hole, hinge position and edge seam of finished Automobile Plastic Part fits perfectly during assembly, sustaining consistent stable output throughout long-term Door Panel Molding and Door Panel Moldings.
l Smart Flow & Cooling Control
All Interior Automotive Mold and Car Interior Mold are fitted with exclusive hot runner systems and 3D printed conformal cooling channels. The design balances melt flow evenly when processing PP+T20 reinforced materials, shortens molding cycles and optimizes flatness of finished parts to raise your overall production capacity.
l Premium Surface Finishes
All Automotive Injection Moulds and Automotive Molds undergo ultra-fine mirror polishing. The Car Door Panel Mould consistently produces flawless glossy or textured surfaces that fully satisfy strict aesthetic standards for premium car interior parts, improving both appearance and durability of door panels.
l Durability That Lasts
Our Car Door Panel Automobile Mold adopts certified high-grade mold steel including 1.2344, 1.2343, 1.2738HH and 1.2738, paired with standardized heat treatment and nitriding. The mold retains stable precision beyond 500,000 injection cycles and effectively lowers your daily maintenance expenses.
(2) Product application
l Global Automotive OEMs & Tier-1 Suppliers: Our reliable Car Door Panel Mould is well-suited for mass Door Panel Molding and Door Panel Moldings of interior and exterior door panels for sedans, SUVs and new energy EVs, delivering steady efficiency and consistent quality for global manufacturing partners.
l Premium Vehicle Interiors: As professional Interior Automotive Mold and Car Interior Mold, our Car Door Panel Automotive Mold realizes perfect Class-A surface effects, the molded parts can be directly assembled on luxury vehicles and fully comply with strict appearance and durability standards.
l EV Lightweighting Goals: This Car Door Panel Automobile Mold adopts lightweight structural design to cut down the weight of finished Automobile Plastic Part, fully matching the energy-saving and lightweight development trend of electric vehicles.
l Wide material adaptability: All our Automotive Injection Moulds and Automotive Molds are structurally optimized for PP+T20 glass fiber, ABS and other mainstream automotive plastics, producing rigid door panels with outstanding dimensional stability.
l Aftermarket & Customization: Our Car Door Panel plastic Mold provides OEM-level precision for aftermarket vendors and custom manufacturers, covering small-batch replacement door panels and exclusive customized styling solutions.
l Sustainable High-Cycle Lines: Equipped with optimized flow and cooling systems, the Door Panel Mould can sustain over 500,000 stable molding cycles. Precise forming control reduces raw material waste and works well with recyclable plastic materials to achieve high-yield and sustainable production targets.
2. Kaihua Service
Choosing Kaihua means gaining more than a mold supplier — you gain a global partner:
l Engineering Support – In-house mold flow analysis and DFM consulting for optimized part and mold design.
l Turnkey Project Management – From concept and prototyping to mold validation and mass production.
l Lean Manufacturing – Guided by KMS and KMVE systems, reducing waste and controlling cost without sacrificing performance.
l Post-sales training: Provides online/on-site training for client teams on mould operation, maintenance, helping avoid improper use and extend mould lifespan, complementing technical support.
l Kaihua's after-sales network spans worldwide, with full second-stage service support in Europe, North America, Thailand, and Malaysia, etc.
Click to learn more about how Kaihua supports you after delivery.
At Kaihua, we are committed to delivering reliable, cost-efficient, and innovative Car Door Panel Mold solutions that support our customers' long-term success.
|
Zhejiang Kaihua Moulds Co., Ltd. |
|||||
|
Speaker |
202 |
Air bag |
216 |
Handle |
196 |
|
Glove box |
420 |
Garnish license |
336 |
C-Pillar |
478 |
|
D-pillar |
520 |
Spoiler |
250 |
Door panel |
1550 |
|
Bumper |
1244 |
Backdoor |
286 |
Grill |
492 |
|
Mud guard |
500 |
Fog lamp |
216 |
Skirt |
381 |
|
Instrument Panel |
1500 |
Sunroof |
30 |
Etc. |
|
7.Product qualification

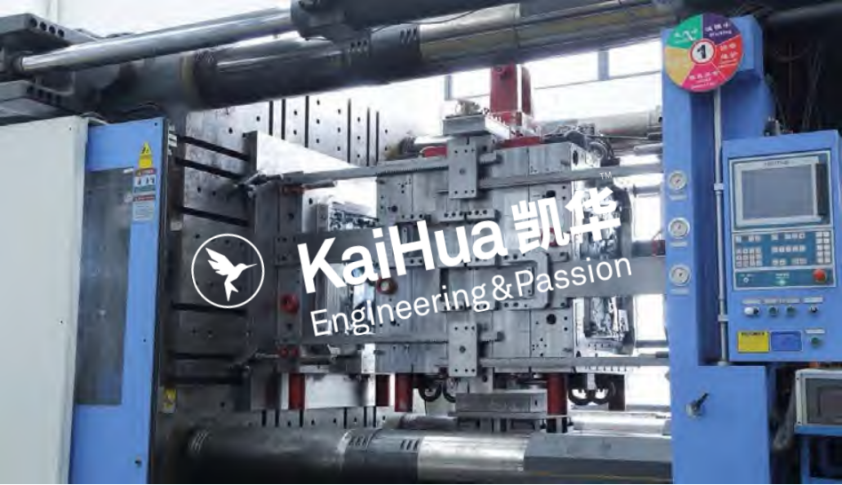

（1）Car Door Panel Mold Trial Process
Our custom Automotive Injection Moulds, especially the Car Door Panel Mould, are professionally engineered solely for automotive door panel mass production. Designed to support high-volume Door Panel Molding, every set of Car Door Panel plastic Mold delivers stable precision and consistent part quality batch after batch. It produces high-performance Automobile Plastic Part with outstanding structural rigidity, long service life and complete functional performance, compatible with passenger vehicles, SUVs and all types of new energy cars.

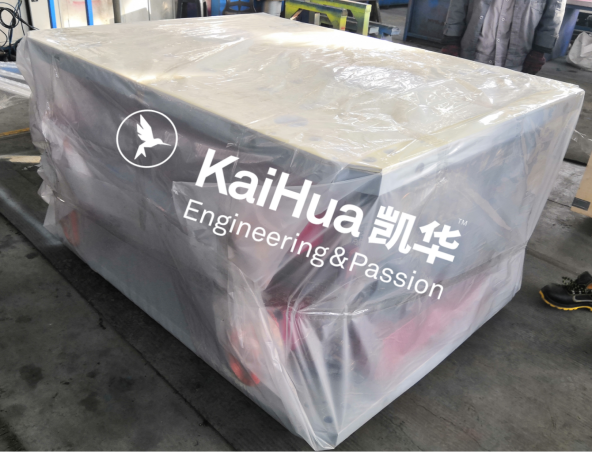

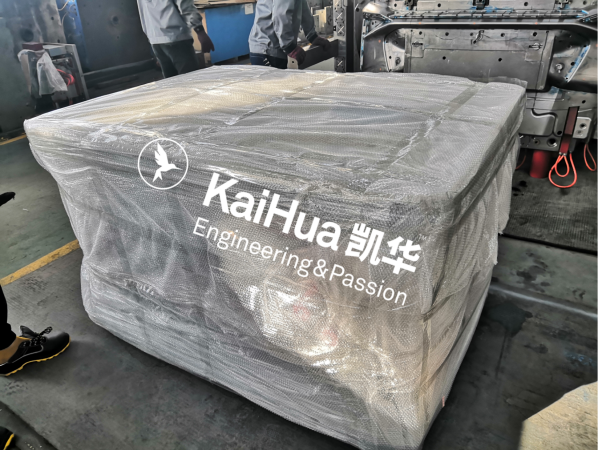

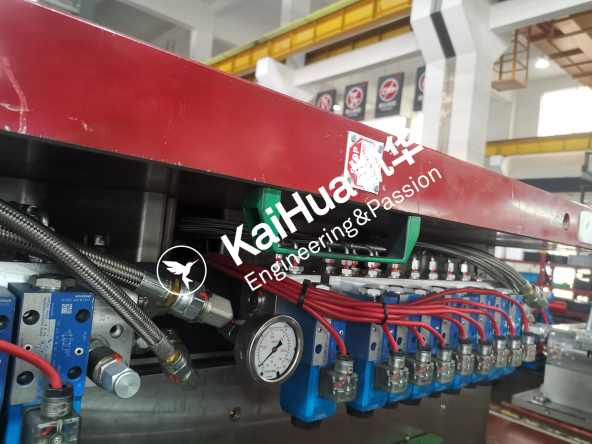

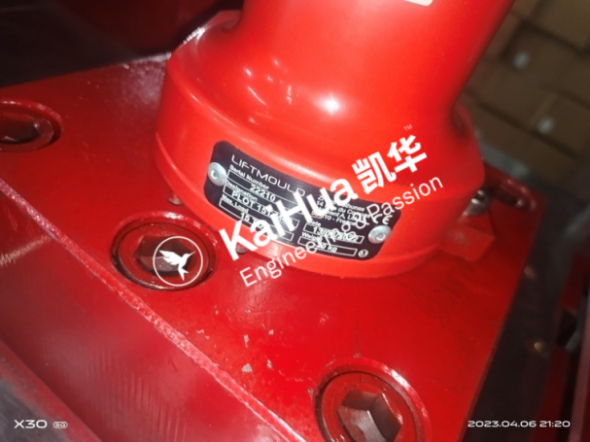

（2）Product shipment and packaging photos
（4）Design review photos
（5）Photos of the Technical Department Meeting

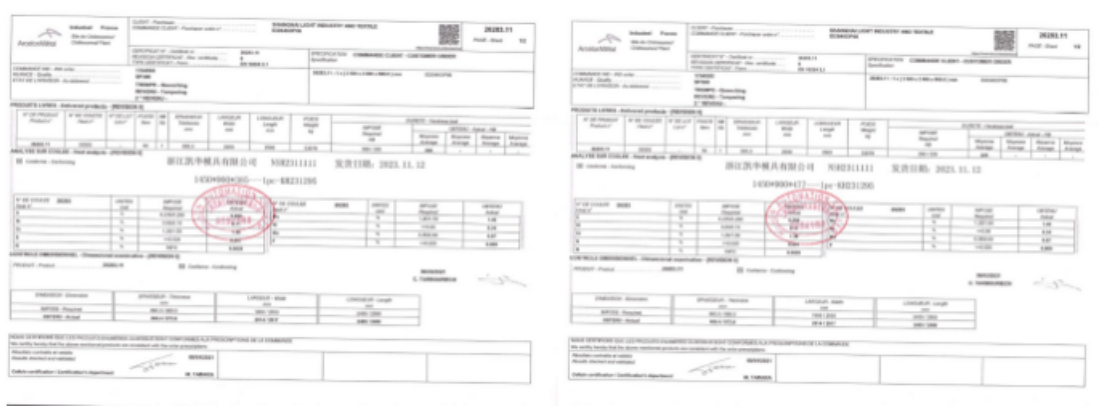

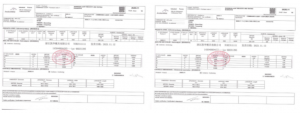

（6）Certificate
