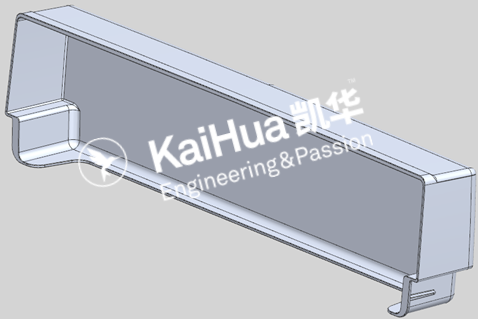

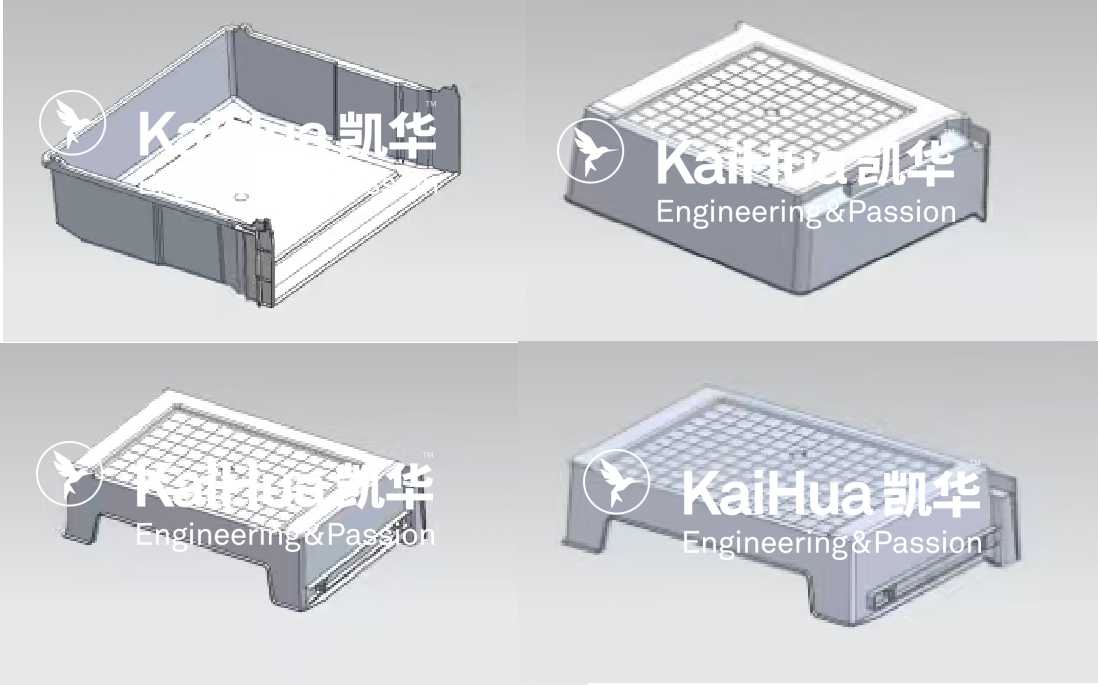

Refrigerator Drawer Injection Mold Fridge Drawer Injection Mold

Short Description:

Zhejiang Kaihua Mould's Refrigerator Drawer Injection Mold uses high-hardness steel for long-lasting performance, easily supporting home appliance mass production needs. It ensures precise drawer dimensions to avoid assembly issues like jamming or cold leakage, with smooth, flawless surfaces even for transparent parts. The mold handles common drawer materials well, balances thin design with strong load-bearing, and fits high-end refrigerator manufacturing requirements perfectly.

Send email to us

Product Detail

Product Tags

1.Product Introduction

As a specialist in refrigerator injection moulds, Kaihua Mould provides customized solutions for refrigerator drawers, helping customers improve product quality and production efficiency.

For standard refrigerator drawer moulds, Kaihua uses 5-axis CNC machining and CAE flow analysis to ensure stable dimensions and smooth drawer movement. High-quality mold steels support long service life and reliable mass production of materials such as HIPS, PP, and ABS. Optimized gate design and hot runner systems improve melt flow, prevent material shortage and weld lines, and ensure structural strength and surface quality.

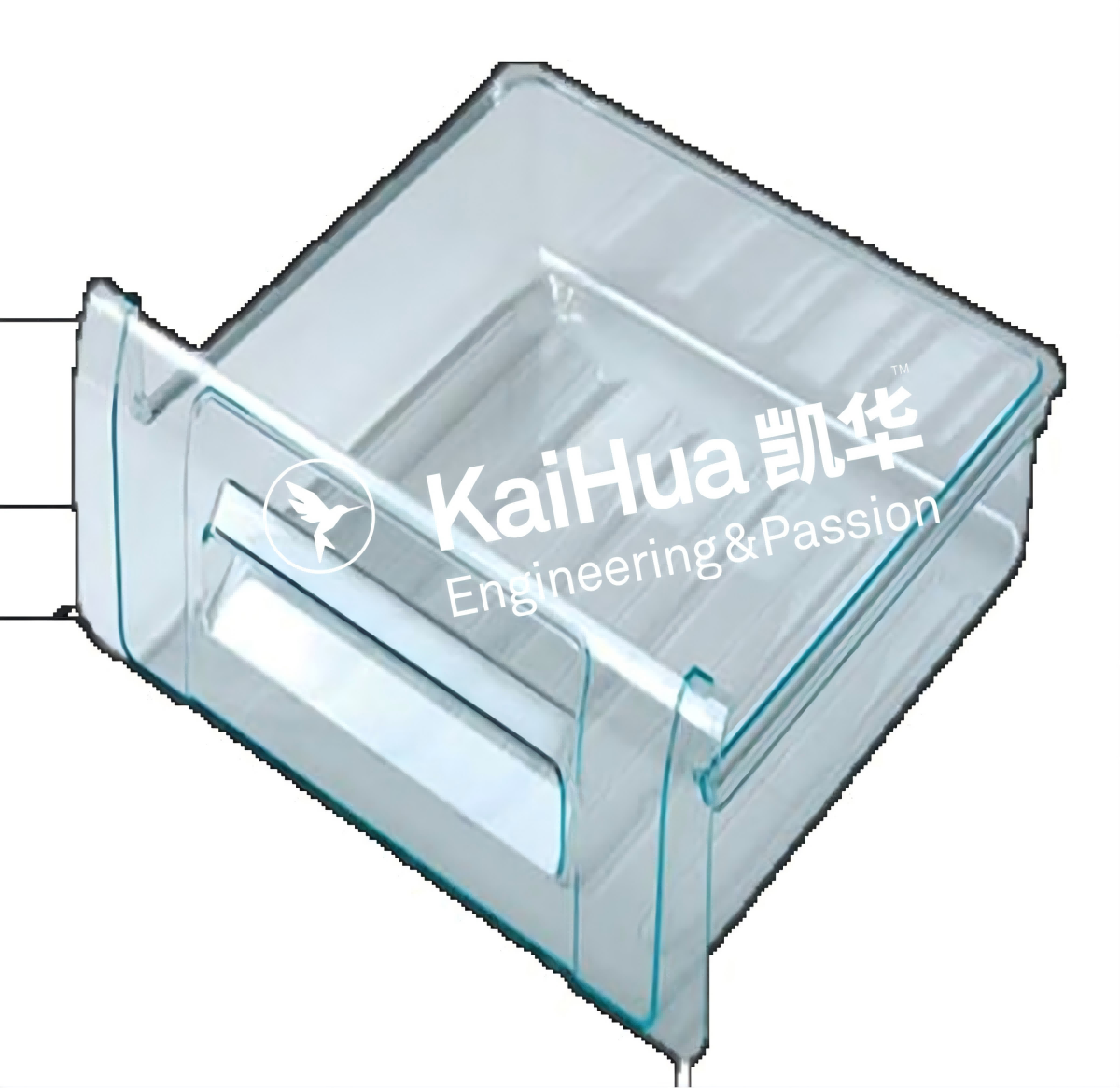

For transparent drawers, cavities polished to a mirror finish and advanced hot runner systems help achieve clear appearance without weld lines. An optimized cooling design reduces deformation and meets the appearance requirements of premium transparent drawers. Strict surface control removes sink marks, flow lines, and scratches to create a clean and smooth surface.

Choosing Kaihua provides complete support from mould design to mass production, along with matching moulds for related components such as sliding rails and ice trays. Our solutions are trusted by international home appliance brands for their stable and consistent performance.

Ready to elevate your refrigerator component production? Contact Kaihua Mold today for customized Refrigerator Mold and Ice Tray Mold solutions, we'll turn your requirements into high quality mold products.

2.Case Product Parameters

Product Name	Refrigerator Drawer Mold
Plastic material	ABS
Product weight (g)	2285
Product size	680X310X380
Product wall thickness(mm)	2.5
Mold weight(t)	19.9
Mold size	1500680840
Injection molding machine tonnage	800
Number of mold cavities	1
Grain or electroplate	Polishing
Automatic demolding requirements	gripper

Product Name	Refrigerator Vessel Mold
Plastic material	PS
Product size	412X379X172
Cavity/Core Metal Material	1.2738HH
Mold weight(t)	3116
Mold size	750700840
Injection molding machine tonnage	1000
Number of mold cavities	1
Grain or electroplate	Grain
Automatic demolding requirements	Robot

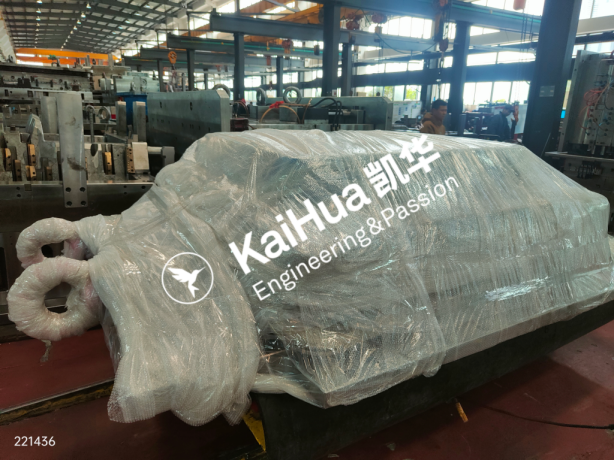

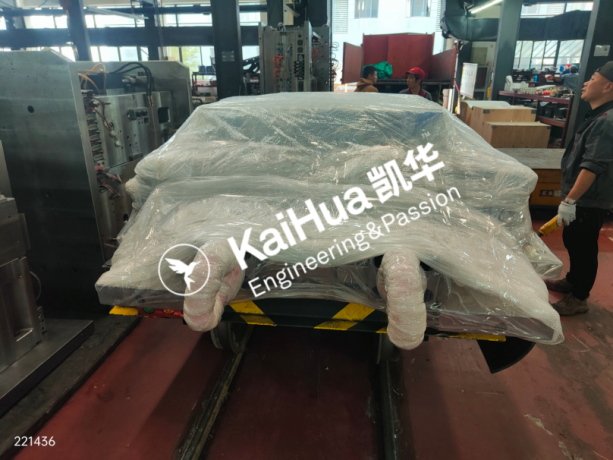

3.Production details

hot-runner-refrigerator-drawer-injection-mold

4.Product feature and application

（1）Product Feature:

As an OEM, Kaihua Mould offers flexible injection mould solutions for freezer drawers, designed to meet diverse customer needs:

● Performance in low temperatures:

We can reinforce cavity walls and add cooling inserts to help drawers resist brittleness and maintain stable load capacity in cold environments.

● Precision and assembly fit:

Our moulds can include finely machined cores, positioning grooves, and guide structures to ensure accurate alignment of compartments and smooth fit with rails, gaskets, or other assembly parts, reducing manual adjustments.

● Durability and surface quality:

For drawers with slip-resistant textures or areas prone to wear, we can enhance cavity surfaces and core sections to maintain long-term slip resistance and surface durability.

● Optimized cooling:

Segmented cooling channels can be designed for uneven thickness areas, balancing temperature during forming and preventing sink marks or internal stress.

● Integrated functional details:

Small features such as hidden handles, drainage holes, or label positions can be incorporated directly in the mould, reducing the need for secondary processing and improving production efficiency.

● Production support:

We can provide monitoring ports for real-time tracking of melt pressure and temperature during production, and standard interfaces for fast mould replacement, supporting efficient manufacturing of different drawer models.

（2）Product Application:

Kaihua's refrigerator drawer molds, a key part of our premium Refrigerator Molds, offer tailored solutions for home and commercial refrigeration. For home appliance makers, these precision molds produce refrigerator drawers that fit leading brands like Midea, Haier, BOSCH, Whirlpool and LIEBHERR. They adapt to diverse models of these brands, support innovative designs such as high-capacity multi-zone storage and meet the strict quality standards of these brands.

In commercial scenarios, our refrigerator drawer molds withstand frequent use in supermarkets and restaurants to ensure reliable food preservation. Beyond heavy-duty options, we also provide molds for standard and specialized commercial refrigeration needs. Whether for mass production or custom requirements, the molds' adaptability helps clients including partners of the above brands develop differentiated products, all aligning with top-tier Fridge Mould benchmarks.
